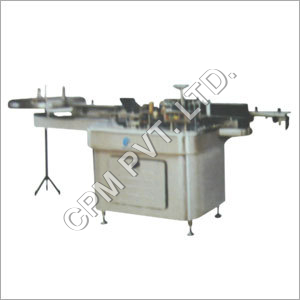

Automatic High Speed Wet Glue Labeling Machine
Our clients can avail from us a comprehensive range of Wet Glue Labeling Machines which is fabricated in compliance with International quality standards and offered at genuine market rates. These machines are fabricated in our sound production unit using premium quality materials and cutting edge techniques to provide enhanced operational fluency, rigidity, reliability and longer life. Our High Speed Wet Glue Labeling Machines automatically label round containers glass, plastic, aluminum, pet, card board containers with wrap-around labels in the vertical position by using cold glue. These machines are energy efficient, user friendly and provided in numerous specifications to match up with the different preferences of our clients.
OPERATION
The round container positioned accurately by a FEED WORM for wrap-around operation at the labeling point, The rotating glue cylinder receives cold glue. from GLUEPOT which subsequently gets transferred on the GLUE RUBBER ROLLER. Finally a fine ,even and thin film of glue is transferred to the gluing pad. The round container on the moving conveyor at the FEED worm Actuates a sequence which result in the oscillation of the LABEL BOX. The rotating LABEL MASTER aligned with the help of pick up fingers from the LABEL MASTER & with oscillating LABEL BOX. The PICK-UP CYLINDER receives labels with the help of pick up fingers from the LABEL MASTER. The PICK- UP- CYLINDER holds the labels perfectly with due to vacuum during its rotational movement. Simultaneously the pick -up fingers move inside. The round container moves on conveyor with the help of worm wheel and glued label on pick up cylinder wrapped around to container by virtue of strip belts. Then the labeled container moves further through a rubber pressing belt that ensures neat & perfect fixing of label.
OPTIONAL ACCESSORIES
- CODE OVER PRINTING DEVICE.
- A/C FREQUENCY DRIVE FOR SPEED
- CONTROL.
- SAFETY GUARD.
- DIGITAL COUNTER FOR BOTTLE.
- ATTACHMENT FOR FLAT BOTTLE.
TECHNICAL SPECIFICATION
Direction of Movement
|
Left to right
|
Out Put / Hour
|
Up to 6000 Nos of round
containers (Depending on the size
of the container or the Label)
|
Electrical Rating
|
1HP - Main motor, 230 Volts, 50
Hz 0.5HP - Vacuum motor, 415
Volts, 50 Hz
|
Structure
|
Top stainless steel matt finish &
Mild steel body Cabled in SS 304
Sheet.
|
Over All Dimensions (Appx)
|
2135 mm (L) x 915 mm (W) x
Adjustable Height 750 to 840 mm
|
Net Weight
|
550 Kg.
|
Case Dimensions
|
2500 mm (L) x 1150 mm (W) x 1250 mm
|
Input Specifications Round Container
Diameter
|
16 mm to 120 mm
|
Label
|
Length 20 mm to 150 mm Width
16 mm to 120 mm
|
Salient Features
- No container, No label - an electrical sensing device avoids wastage of labels.
- Minimum change over time is required form one size of container or label to another.
- Suitable for overlap labeling and flag type labeling where the length of label is more than circumference of the container.
- A highly efficient vacuum pump develops just sufficient vacuum to hold .
- Labels-big or small on the pick-up cylinder.
- Complete protection of the motors is ensured by the contactors and relays of appropriate rating.
|
