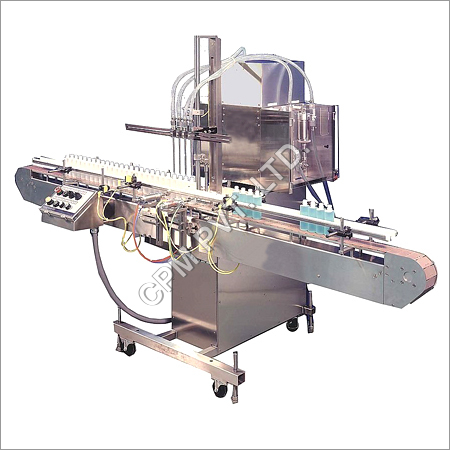

Automatic Volumetric Liquid Bottle Filling Machine

Automatic Volumetric Liquid Bottle Filling Machine
Automatic Volumetric Liquid Bottle Filling Machine
Product Code : CPMALF
Product Description

Clients can avail from us an excellent quality range of Volumetric Liquid Bottle Filling Machine that is widely demanded in the chemical, pharmaceutical and other allied industries for liquid filling. The offered machine is assembled using supreme grade components with the aid of contemporary technology by our trained team of professionals. To meet specific requirements of the clients, we offer this Volumetric Liquid Bottle Filling Machine in various models and specifications as per their need at affordable price.

 Features:

  • + 1 % Filling accuracy on single dose

  • No bottle No filling system

  • Online inbuilt pre inspection unit dome type (optional)

  • Minimum change overtime, from one size to another container or fill size

  • Self lubricating UHMW- PE guide profile for SS slat chain provides low friction wear surface, smooth and noiseless conveying

  • Error code display on AC frequency drive on control panel

  • Drip tray under the conveyor

  • Pneumatic bottle stopping arrangement

  • Synchronized two nos. A/C drive for main motor & conveyor belt

  • Safety guard for conveyor gear box, motor and pneumatic cylinders

TECHNICAL SPECIFICATIONS:

MODEL NO

CPMALF -2

CPMALF-4

CPMALF-6

Output/Min of 100 ml

20-30/ min. depending on material foaming character

30-40 / min. depending on material foaming character

40-60 / min. depending on material foaming character

Direction of Movement

Left to Right

Left to Right

Left to Right

Number of head/syringe

2 Nos

4 Nos

6 Nos

Fill Size (higher size fill volume up to 2500 ml also available)

5 ML TO 250 ML with the help of change parts.

5 ML TO 1000 ML with the help of change parts.

5 ML TO 1000 ML with the help of change parts.

Electrical
Specification

Main Machine

1.0 HP / 415 Volts / 50 Hz.

1.0 HP / 415 Volts / 50 Hz.

1.5HP / 415 Volts / 50 Hz.

Conveyor

0.5 HP / 415 Volts / 50 Hz.

0.5 HP / 415 Volts / 50 Hz.

0.5 HP / 415 Volts / 50 Hz.

Height of Conveyor

860 mm to 910 mm adjustable.

860 mm to 910 mm adjustable.

860 mm to 910 mm adjustable.

Length of conveyor

6 ft. X 90 MM

6 ft. X 90 MM

6 ft. X 90 MM

Length of conveyor with inbuilt inspection

8 ft. (Variable as per client requirement)

10 ft. (Variable as per client requirement)

10 ft. (Variable as per client requirement)

Change parts required

Syringes.
Nozzle
Inlet & outlet hose pipe
Syringes.
Nozzle
Inlet & outlet hose pipe
Syringes.
Nozzle
Inlet & outlet hose pipe
