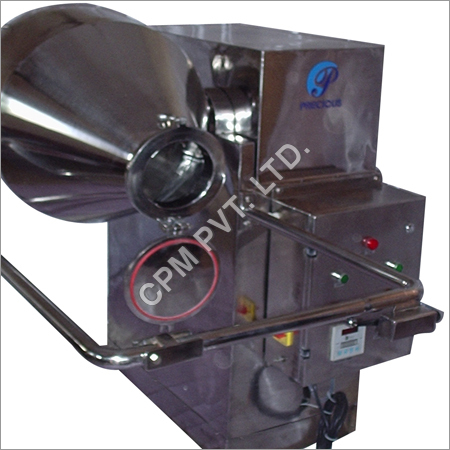

Double Cone Blender Machine
We, CHITRA PHARMA MACHINERY, are engaged in manufacturing, exporting and supplying a wide gamut of Cone Blender Machine in various models and specifications to suit the diverse requirements of Pharmaceutical Industry and allied segments. Fabricated using cutting edge technology and finest grade of raw materials & components, these Blender Machines are at par with the defined industry parameters. Our quality controllers examine the complete range on the basis of certain quality parameters to ensure sturdy design, durability, longer life and optimum performance. Clients can avail these Machines from us at cost effective prices.
OPERATION: The Double Cone Blender is an efficient and versatile machine for mixing dry powder and granules homogeneously. All the contact parts made out of stainless steel of required grade by customer. Two third of the volume of the Cone Blender is filled to ensure proper mixing. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc. Two nos. of safety road will be provided at back side. ( One LH side & one RH side ) Suitable size of Flange / butter fly valve at one end of the cone provided for material discharge & hole with open able cover provided at other end of the cone for material charging & cleaning. One shaft with 04 nos. of fixed baffles with mirror polished provided inside the cone.
TECHNICAL SPECIFICATION
|
MODEL NO-
|
CPMDCB - 10
|
CPMDCB - 25
|
CPMDCB - 50
|
CPMDCB -100
|
CPMDCB -150
|
CPMDCB -200
|
CPMDCB -250
|
CPMDCB -300
|
|
Gross Volume in ltrs.
|
35
|
80
|
150
|
300
|
450
|
600
|
800
|
900
|
|
Working Volume/ Ltrs
|
10
|
50
|
100
|
200
|
300
|
400
|
500
|
600
|
|
Motor Hp
|
0.5
|
1
|
2
|
3
|
5
|
5
|
7.5
|
7.5
|
|
Gear Box
|
1.75"
|
1.75"
|
2"
|
3"
|
4"
|
4"
|
5"
|
5"
|
|
Butterfly Valve
|
NA
|
NA
|
NA
|
200
|
200
|
250
|
250
|
250
|
|
Safety Guard
|
NA
|
NA
|
YES
|
YES
|
Yes
|
YES
|
YES
|
YES
|
|
Discharge Ht
|
300
|
300
|
450
|
450
|
450
|
450
|
450
|
450
|
Note: Models for large scale, Small Scale, and Lab Size cone mixer or Blender to suit as per material mixing requirement are also available. Motor mounting and direction can be made as per client requirement.
SALIENT FEATURES:
- Cone will be mirror polished from the inside & outside & structure will be matt polished
- As per customer requirement machine will be provided with left side drive or with right side drive
- Worm reduction gear use for speed reduction
- Food grade rubber gasket will be used on both end of cone as well as in butterfly valve
- Hand wheel will be provided for manual tilting of cone
- FLP MOTOR (Optional)
|
