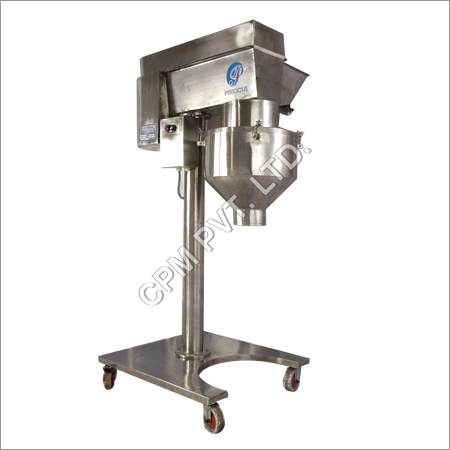

Multi Mill Machine
We offer our esteemed clients a wide assortment of Mill Machine which is extensively demanded in Pharmaceutical Industry for its operator friendly design, easy installation and negligible maintenance. These machines are fabricated using high grade raw materials & components in our sophisticated manufacturing unit. Accurately designed by adept engineers as per the specifications of our clients, these Mill Machines are rugged in construction, resistant to corrosion & abrasion, energy efficient and offer noiseless operation for a longer period.
OPERATION:
It operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container kept below the processing chamber. Output and quality of the final product depends on three main factors Shape of beaters (knife/impact edges). SALIENT FEATURES:
- All contact parts can be easily and quickly dismantled and cleaned
- Machine is designed for continuous operation
- Cylindrical screen for higher output
- Flame proof electrical can be provided at extra cost
- Material Charging auto screw feeder are also available
TECHNICAL SPECIFICATIONS:
|
MODEL NO.
|
CPMMM-05
|
CPMMM-1
|
CPMMM-3
|
|
Output
|
10 to 50 Kgs. / Hr.
|
25 to 100 Kgs. / Hr.
|
50 to 200 Kgs. / Hr.
|
|
Rotor Assembly Diameter
|
100 mm Approx.
|
150 mm Approx.
|
250 mm Approx.
|
|
Rotor Speed
|
750 / 1500 / 2300 / 3000 RPM
|
750 / 1500 / 2300 / 3000 RPM
|
750 / 1500 / 2300 / 3000 RPM
|
|
Beaters
|
12 Nos. knife and impact edges and 2 Nos. scraper blades
|
12 Nos. knife and impact edges and 2 Nos. scraper blades
|
12 Nos. knife and impact edges and 2 Nos. scraper blades
|
|
Screen dimension
|
Inner Diameter 60 mm / Height 135 mm
|
Inner Diameter 160 mm / Height 135 mm
|
Inner Diameter 260 mm / Height 135 mm
|
|
Motor
|
0.25 Hp / 1440 RPM / 440 V. / 50 Hz. AC
|
0.1 Hp / 1440 RPM / 440 V. / 50 Hz. AC
|
3 Hp / 1440 RPM / 440 V. / 50 Hz. AC
|
|
Starter
|
Selector reversible switch
|
"DOL" with reversible switch
|
"DOL" with reversible switch
|
|
Material charging height
|
1000 mm
|
1250 mm
|
1445 mm
|
|
Material discharging height
|
Variable as required by client
|
Variable as required by client
|
730 mm
|
Note: Models for large scale, Small Scale, and Lab Size Multi mill to suit as per material milling requirement are also available.
|
