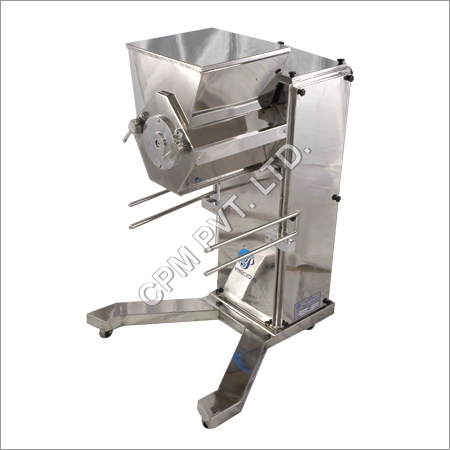

Oscillating Granulator Under the able guidance of our quality control experts, we are able to manufacture and offer our clients a comprehensive assortment of Granulator which is acknowledged for its striking features like rigid construction, durable finish standards, noiseless operation and optimum output. These Oscillating are fabricated in association with the set domain norms in order to ensure International quality standards and trouble free operation for a longer duration. Our energy efficient Granulators are easy to install, simple to maintain and can be availed by clients at affordable market rates. SPECIAL FEATURES:
- Continuous oscillating stirrer drive
- Easy to clean. Entire working zone. And stirrer can be dismantled quickly
- Simple screen holding and tensioning device
- Availability of different mesh sizes of screen
- Long life and economic of screen
VERTICAL MODEL
|
HOPPER CAPACITY
|
30 LTRS. (8")
|
|
SCREEN AREA
|
8" respectively
|
|
OUTPUT
|
30 TO 100 / 200 KGS/HR (APPROXIMATELY DEPENDING UPON THE MATERIAL
|
|
POWER SUPPLY
|
1 H.P (8") 1440 R.P.M , 440 VOLTS, 3 PHASE, 50 CYCLES A.C.
|
|
APPROX. DIMENSIONS
|
28" X 16.5" X 48"
|
HORIZONTAL MODEL
|
HOPPER CAPACITY
|
34 LTRS
|
|
SCREEN AREA
|
12.4" X 14.3" LENGTH
|
|
OUTPUT
|
30 TO 200 KGS/HR (APPROXIMATELY DEPENDING UPON THE MATERIAL
|
|
POWER SUPPLY
|
1.5 H.P 1440 R.P.M , 440 VOLTS, 3 PHASE, 50 CYCLES A.C.
|
|
APPROX. DIMENSIONS
|
28" X 16.5" X 48"
|
APPLICATION:
The machine is HORIZONTAL TYPE & VERTICAL TYPE granulating system. The machine will be a gmp model. The machine is complete in all respects and fitted with T.E.F.C. motor. Standard reduction box and a starter. The body of the machine is "L" shaped fabricated structure and fitted with castor wheels for ease and mobility. Model 8" & 12" are vertical models whereas 6" & 10" model is horizontal model. The difference between vertical model and horizontal model is that in vertical model the oscillation is done by a gear mechanism and a vertical shaft is suspended from the top and a propeller type grinder blade moves in oscillating motion and material is pushed through the mesh to get the output of desired mesh size.
In horizontal model there are diamond shaped blades horizontally fitted and driven by a gear box through gear mechanism to give oscillating motion.
Hopper, the stirrers, sieves and all other parts that come in contact with the material to be granulated are made out of stainless steel.
A simple and positive arrangement of holding and tensioning of the screen is provided. The arrangement is such that the screen remains stretched throughout the operation and very close and uniform gap is maintained constantly. Thus it produces better quality of granules and reduces excessive wear on both stirrer and the mesh.
All the parts working on the materials being granulated can be easily and quickly dismantled for thorough cleaning without the use of spanners. Separate stirrers for dry and wet granulation are provided and they are so designed that the efficiency of granulation process is optimized in each case. The stirrers can also be replaced quickly and easily.
|
