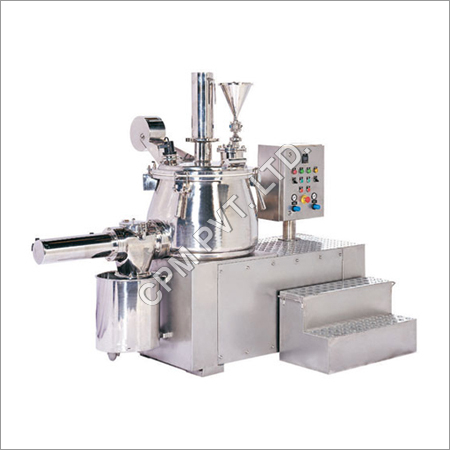

Rapid Mixer Granulator Machine

Rapid Mixer Granulator Machine
Rapid Mixer Granulator Machine
Product Code : CPMRMG
Product Description

We are the foremost manufacturer, exporter and supplier of excellent quality Rapid Mixer Granulator Machine. It is manufactured at our state-of-the-art manufacturing unit under the surveillance of our adroit professionals using quality tested components. This machine is specifically used for mixing and making granule in food processing and chemical industries. To cater to the specific requirements of the clients, this machine is obtainable in varied specifications. Precisely tested on different quality parameters by our quality controllers to make sure its trouble-free performance, this Rapid Mixer Granulator Machine is offered at pocket-friendly prices.

SPECIAL FEATURES:

  • Air purged shaft seals eliminating powder entering the seal

  • Built in cleaning system for both shaft seals

  • Layouts to suit individual requirements possible

  • Machine can be provided with loading & unloading units to form an assembly line & reduce material handling (Optional feature)Machine can be provided with loading & unloading units to form an assembly line & reduce material handling (Optional feature)

  • Fanner taper lock pulley on main drive to reduce vibration and better transmission efficiency

  • Main Bearing Housing provided with 3 nos Oil Seals and sleeve to minimize powder leakages / cross contamination

  • Main panel provided with pressure switch control for proper functioning of the machine at desired pressure of air only to prevent powder entry into impeller and eliminates jamming of impellers

  • Circuit provided with interlock contractors so that chopper cannot operate directly, independently

  • Discharge plunger provided with 3 position solenoid valves to open and close at desired levels, thereby regulating the discharge and preventing discharge of large lumps

  • Pneumatic circuit provided with non return valve and water inlet./ outlet connections for facilitate washing of the main impeller assembly without dismantling, to facilitate faster change over

TECHNICAL SPECIFICATIONS:

MODEL NO

Working Volume, Kgs

Gear Box Ratio

Main Motor HP (1500/750 RPM)

Chopper Motor HP(1500/3000 RPM)

Discharge ht.

CPMRMG-5

5-7.5

4"

3/5

1.5/2

600

CPMRMG-25

25

4"

3/5

1.5/2

600

CPMRMG-30

40

7.5:1

7.5/10

2/3

700

CPMRMG-60

60

7.5:1

10/15

3/5

780

CPMRMG-100

100

10:1

22.5/30

3/5

1055

CPMRMG-120

120

10:1

22.7/30

3/5

1200

CPMRMG-150

150

10:1

35/40

5/7.5

1200

CPMRMG-200

200

10:1

40/50

5/7.5

1200

CPMRMG-300

300

15:1

50/60

5/7.5

1200

CPMRMG-400

400

15:1

63/85

10/15

1200
