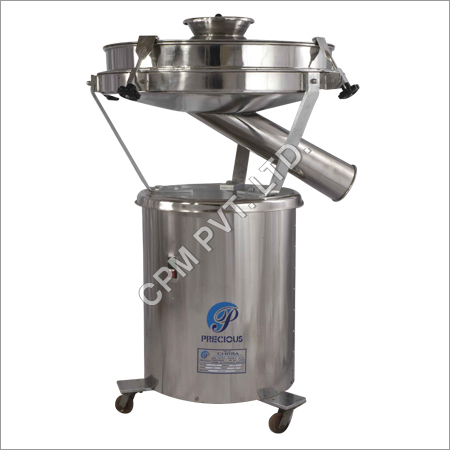

Vibro Sifter Machine

Vibro Sifter Machine

We provide our clients a quality approved range of Sifter Machine which is highly in demand in Pharmaceutical industry. Manufactured as per the International quality standards, our range is appreciated by clients based across the world for features such as sturdy construction, durable finish standards, high strength, and simple maintenance. Moreover, our Machines are easy to install, operator friendly, consume minimum electricity and offer trouble free performance for a longer period. The corrosion & abrasion resistant range of Vibro Machines is offered by our organization in numerous models and at industry leading prices.

OPERATION:

The top weight on the motor shaft rotates in a plane close to the centre of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate.

The bottom eccentric weight rotates below the centre of mass creating tilt on the screen giving vibration in vertical and tangential plane. Increasing the vertical component of motion, this promotes turn over of material on the screen surface helping maximum quantity of undersize material to pass through the screen. Rugged Springs placed over the circular motor base amplifies the vibration.

TECHNICAL SPECIFICATIONS:

MODEL NO.	CPMVS-20" DIA	CPMVS-30" DIA	CPMVS-36" DIA	CPMVS-48" DIA
Over all Dimensions	600 X 750 X 1250 mm	900 X 900 X 1250 mm	1200 X 1200 X 1250 mm	1350mm X 1350 mm X 1350 mm
Weight	90 Kgs	120 Kgs	190 Kgs	280 Kgs
Speed (R.P.M.)	1440 RPM	1440 RPM	1440 RPM	1440 RPM
Utility Requirement Electricity	0.5 ph 50 Hz, 415 volts	3 ph 50 Hz, 415 volts	3 ph 50 Hz, 415 volts	3 ph 50 Hz, 415 volts
Top lid Provided	Conical in shape with hopper	Conical in shape with hopper	Conical in shape with hopper	Conical in shape with hopper
Electrical Requirement	0.5 hp	0.5 hp	1.0 hp	1.5 hp
Power Supply	3 phase 440V A. C.	3 phase 440V A. C.	3 phase 440V A. C.	3 phase 440V A. C.
Total Electrical Load	0.5 hp	0.5 hp	1.0 hp	1.5 hp
Dec. : Clamps, Ring, Side Covers etc MOC	SS 316	SS 316	SS 316	SS 316
Gasket	Teflon / Food Grade Neoprene	Teflon / Food Grade Neoprene	Teflon / Food Grade Neoprene	Teflon / Food Grade Neoprene
Surface Finish	Inside outside As required	Inside outside As required	Inside outside As required	Inside outside As required
M. S. Parts	Painted (only Motor Plate Will Be Painted.	Painted (only Motor Plate Will Be Painted.	Painted (only Motor Plate Will Be Painted.	Painted (only Motor Plate Will Be Painted.

Note: Models for large scale, Small Scale, and Lab Size Vibro Sifter are also available.
